15kN Nylon Wheel Single Conductor Pulley For Conductor Size 150~240mm2

Product Categories

Yixing Boyu Electric Power Machinery Co.,LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 15kN Nylon Wheel Single Conductor Pulley For Conductor Size 150240mm2
Brand: Boyu
Price: 1 USD

Brand Name : Boyu

Model Number : TYSHD-200X40

Certification : ISO9001

Place of Origin : China

MOQ : 10sets

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Single Conductor Pulley

Wheel size Diameter x Width : 200X40mm

Conductor size : 150~240mm2

Rated load : 15kN

Weight : 2.5kg

Wheel material : Nylon

Contact Now

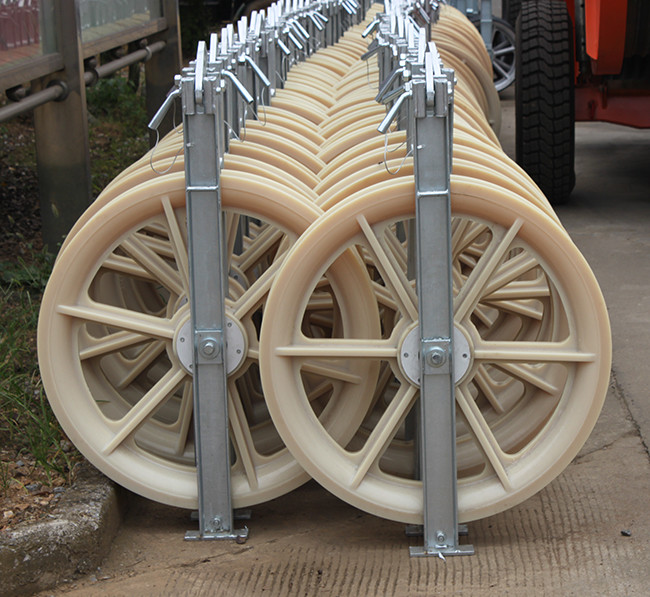

Bundled Conductor Pulley Nylon Single Conductor Pulley Conductor Size 150~240mm2

Cable Pulley
Stringing blocks have different diameter were used to string different conductors.

Our Large diameter stringing blocks are High strength and flexibility,easy to use,light weight,and long service.

TYSHD Single Conductor Pulleys

Model	Wheel size Diameter x Width (mm)	Conductor size (mm2)	Rated load (kN)	Weight (kg)	Wheel material
SHDN-120X30	120x30	25~70	5	1.5	Nylon
SHDN-160X40	160X40	95~120	10	2.3
SHDN-200X40	200X40	150~240	15	2.5
SHDN-200X60	200X60	150~240	15	3.0
SHDN-250X40	250X40	150~240	20	3.6
SHDN-250X60	250X60	300~400	20	3.8
SHDN-270X60	270X60	300~400	20	4.3
SHDN-320X60	320X60	300~400	20	7.5
SHDN-400X80	400X80	400~500	20	8
SHDN-508X75	508X75	≤400	20	18
SHDN-660X100	660X100	≤500	20	20
SHDN-830X110	830X110	≤630	30	25
SHDN-916X110	916X110	≤800	50	45
SHDN-1040X125	1040X125	≤1000	55	105
SHDN-1160X150	1160X150	≤1250	60	165
SHDNN-255X110	255X110	≤630	100	77
SHDNN-325X150	325X150	≤1520	120	85

Wheel material aluminum or nylon, and it could be covered by rubber.
